DOE Pro XL Features
Create designs, analyze with regression, predict, optimize, and graph, all inside Excel.
Features
Everything included in DOE Pro XL: from design selection to multi-response optimization.
Microsoft Excel Integration
- Store, analyze, and present results within Excel
- No copying or pasting data to external software
- Results output directly into your workbook

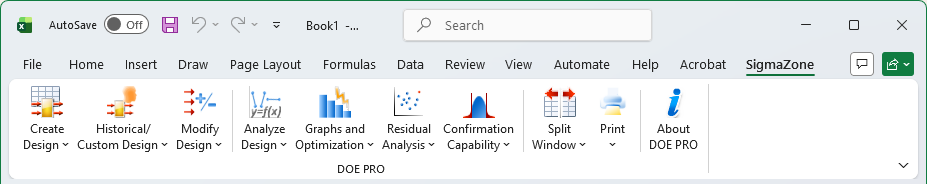

- Dedicated ribbon tab for easy access
Available Designs
2-Level Designs
- Full and Fractional Factorial
- Taguchi L4, L8, L12, L16, L32
- Plackett-Burman 8, 12, 16, 20, 24, 28
3-Level Designs
- Full Factorial
- Taguchi L9, L18, L27
- Central Composite Design (CCD)
- Box-Behnken
Custom Design
Modify Design
- Add / Remove Replicates
- Add / Remove Outputs
- Change Name, High, or Low Value
- Change Interactions
- Generate Random Responses
- Add Runs
- Randomization String
Analyze Design
- Multiple Response Regression
- Simultaneous Y-Hat and S-Hat modeling
- Model multiple responses in one model
- Coded or Uncoded Coefficients
- ANOVA
- Multiple Plots
- Marginal Means Plots
- View Aliasing Pattern
Graphs
- Interaction Plot
- Surface Plot
- Contour Plot
- Pareto of Regression Coefficients
- Main Effects (Marginal Means) Plots
- Multiple Plots view
Optimization
- Multi-Response Optimization (Genetic Algorithm)
- Optimize Y-Hat, S-Hat, or Cpk-Hat
- Define multiple constraints
- Assign weights to each constraint
Residual Analysis
Available Residuals:
- Leverage
- Residual and Studentized Residual
- R-Studentized Residual
- Cook's D
Plot Residuals vs:
- Factors, Run #, Actual Y, Predicted Y
